12V Cool&Heat Electric Universal Underdash Air Conditioner DC Auto Car A/C Kit

UNIVERSAL A/C KIT HEAT AND COOL Universal Under-Dash Evaporator Unit Model: E-404-100 Heat & Cool 32 pass 4way all aluminum coil Expansion valve 1.5 Ton Thermostat and rotative 3-speed blower switch 12 VOLTS DOUBLE SHAFT BLOWER MOTOR Mounting bracket drain hose and T included 12,700BTU capacity 359 CFM DIMENSIONS: L15¾" X D12½" X H6" Compressor ⚡ 100% ELECTRIC 🔋 COMPRESSOR ⚙️ 12 VOLTS DC WITH ELECTRICAL HARNESS Model: CE20CC-12 Compressor Model: CE20CC-12 Compressor type Integrated electric scroll compressor Suitable refrigerant R134a Compressor displacement 20cc/r Oil injection quantity RL68H(POE)/120ml(or according to customer requirements) Compressor driver Integrated Motor type Permanent magnet DC speed regulating synchronous motor Drive control Equipped with special controller Insulation class Grade F Total mass(oil) 4.7kg Cooling mode Suction refrigerant cooling Suction diameter/seal φ18.3/O ring radial seal Exhaust port diameter/seal φ15.5/O ring radial seal Speed range 1500 rpm~2300 rpm Withstand Seal pressure 3.5MPa pressure test Breaking pressure 6.5 MPa(high pressure side)/2.5 MPa(low pressure side) Class of protection IP67 (compressor connectors and docking parts used together) Condenser Model: CPF142018 PARALLEL FLOW (micro-tube technology) 14"H X 20"L .70"(18mm)W 4 Rails Aluminum #8 O-ring IN #6 O-ring OUT Condenser Fan Model: CF1212 12" Diameter 12 Volts 80W 6 AMP Reversible Puller or Pusher 4 Mounting Brackets included Hoses Set Model: H6516,H81332, H1012 A/C HOSE #6 5/16 = 6'feet #8 13/32 = 4'feet #10 1/2 = 5' feet (NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply) Fitting Set Model: FTSET404 1-N° 10 90° O-ring Fitting w/R134a Serv Port 1- N° 8 90° O-ring Fitting w/R134a Serv Port 1- N° 10 Straight O-ring Fitting 1- N° 10 90° O-ring Fitting 2- N° 6 90° O-ring Fitting 1- N° 8 90° O-ring Fitting 2- N° 6 Straight O-ring Fitting Set include metal FERRULES and CLAMPS If you decided use a/c clamps you don't need special crimper tool (YES... We include both systems) O-ring set is included Filter Drier Model: FD100B BLACK 2½"Diameter 7½"Hight Sight Glass #6 ⅜ X ⅜ O-ring connections both sides (HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED) Electrical Harness all ours kits come with “Plug and Play” Electrical harness to easily connect all the components designed for a regular size car or trucks applications. for special Lengths applications please contact us extra charges maybe apply NOTE: Freon R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separately We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.

• UNIVERSAL A/C KIT HEAT AND COOL Universal Under-Dash Evaporator Unit Model: E-404-100 Heat & Cool 32 pass 4way all aluminum coil Expansion valve 1.5 Ton Thermostat and rotative 3-speed blower switch 12 VOLTS DOUBLE SHAFT BLOWER MOTOR Mounting bracket drain hose and T included 12,700BTU capacity 359 CFM DIMENSIONS: L15¾" X D12½" X H6"
• Model: CE20CC-12 Compressor Model: CE20CC-12 Compressor type Integrated electric scroll compressor Suitable refrigerant R134a Compressor displacement 20cc/r Oil injection quantity RL68H(POE)/120ml(or according to customer requirements)
• Condenser Model: CPF142018 PARALLEL FLOW (micro-tube technology) 14"H X 20"L .70"(18mm)W 4 Rails Aluminum #8 O-ring IN #6 O-ring OUT

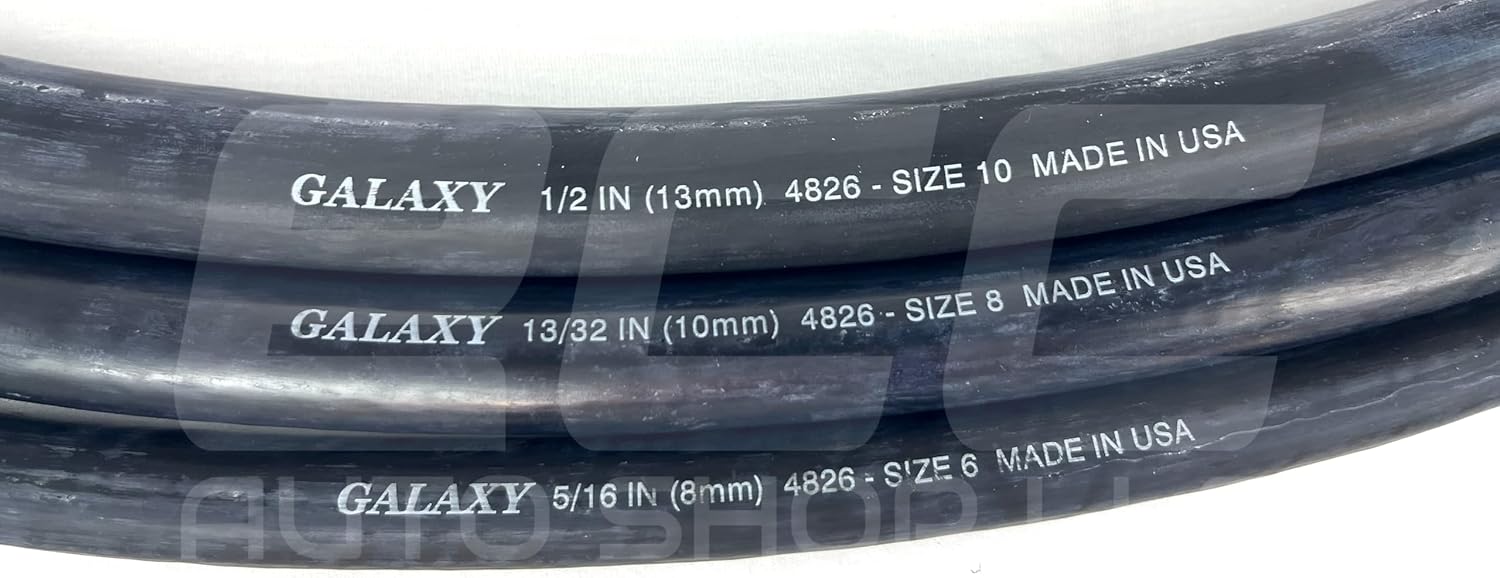

• Hoses Set Model: H6516,H81332, H1012 A/C HOSE #6 5/16 = 6' feet #8 13/32 = 4' feet #10 1/2 = 5' feet (NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply) Fitting Set Model: FTSET404 1-N° 10 90° O-ring Fitting w/R134a Serv Port 1- N° 8 90° O-ring Fitting w/R134a Serv Port 1- N° 10 Straight O-ring Fitting 1- N° 10 90° O-ring Fitting 2- N° 6 90° O-ring Fitting 1- N° 8 90° O-ring Fitting 2- N° 6 Straight O-ring Fitting Set include metal FERRULES and CLAMPS If you decided use a/c clamps you don't need special crimper tool (YES... We include both systems) O-ring set is included
• - Filter Drier Model: FD100B BLACK 2½"Diameter 7½"Hight Sight Glass #6 ⅜ X ⅜ O-ring connections both sides (HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
• - Condenser Fan Model: CF1212 12" Diameter 12 Volts 80W 6 AMP Reversible Puller or Pusher 4 Mounting Brackets included
• - Electrical Harness all ours kits come with “Plug and Play” Electrical harness to easily connect all the components designed for a regular size car or trucks applications. for special Lengths applications please contact us extra charges maybe apply
• - NOTE: Freon R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separately We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
