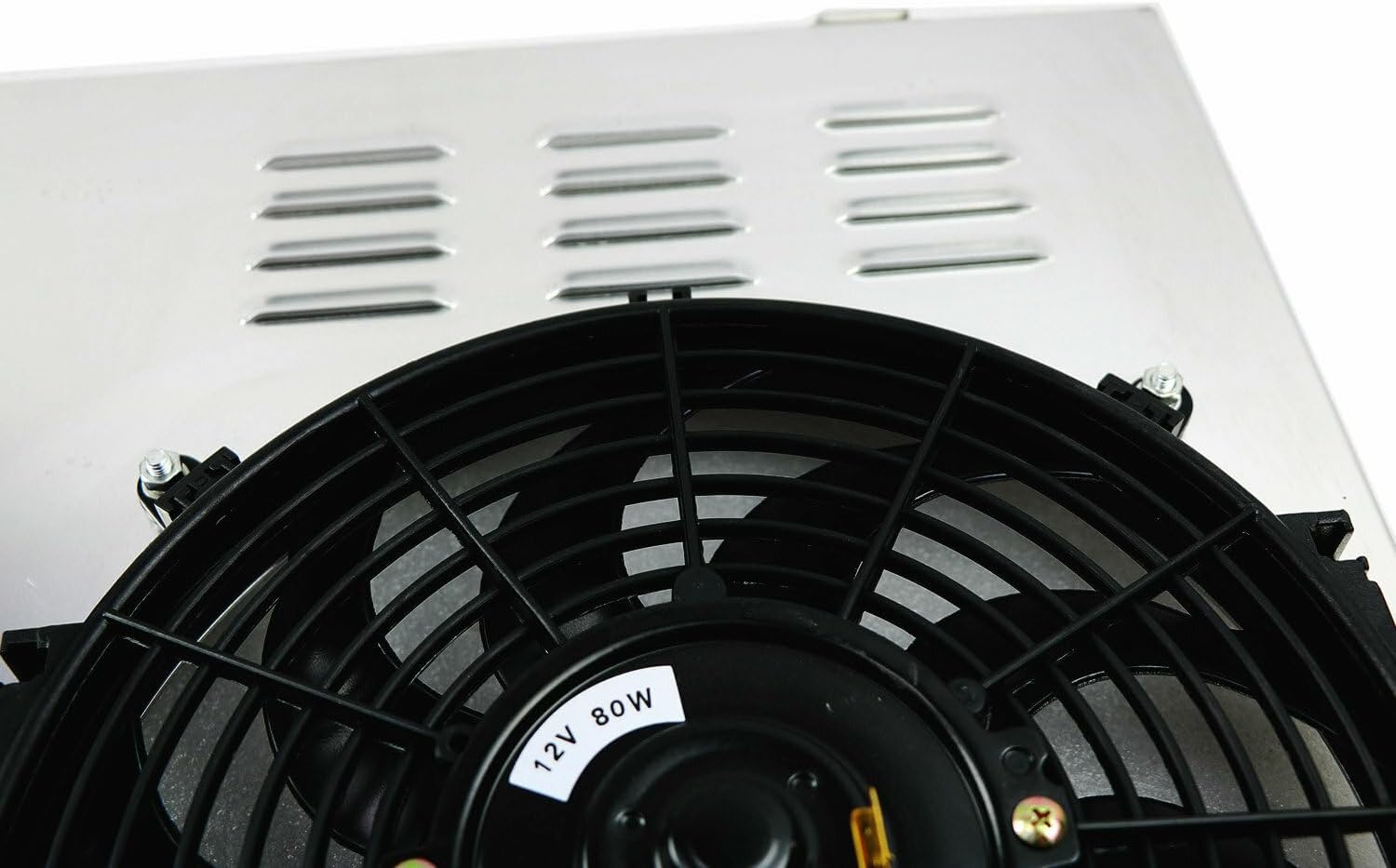

Radiator Electric Fan + Shroud + Relay Compatible with 1968-1987 1969 Chevy C10 Chevelle El Camino Impala

Vehicle Fitment:Compatible with Chevy Impala Blazer GMC Jimmy 1973-1980Compatible with Chevy Monte Carlo 1970-77/Chevy Impala 1971-1979Compatible with Chevy K5 K10 Blazer 75-80/Cutlass Supreme 74-77Compatible with Chevy Caprice 1971-1990/Chevelle/GM 28" 66-80Compatible with Cadillac Fleetwood/Brougham 1965-1974Compatible with Chevy Chevelle 1968-1973/Chevy El Camino 1968-1977Compatible with Oldsmobile Delta 1968-1988/Pontiac 1968-1970Compatible with Cadillac Olds CarsCompatible with Olds Cutlass and Cutlass Supreme 66-77Fan Size:Diameter: 12'' (Blade to Blade)Voltage: DC 12 VoltsFan Thickness: 2.5"Number of Blades: 10 S-Type bladesMaximum Fan CFM (Cubic Feet per Minute): 2150cfmMaximum Fan RPM(Revolution(s) Per Minute): 2000±10%S-Type Blade pull push design, to make air flow more efficient and bring more cooling EffectThermostat Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.This set up will run Fans & pull air in through radiator.

• Fits radiator core size: 17" High x 28 1/4" Wide, overall size: 18 5/8" High x 33" Wide
• Package Include: 1 X AA5052 aluminum shroud, 2 X 12" fans (includes mounting kits), 1 X thermostat relay kit
• Aluminum alloy-shroud design with durable, tig-welded construction
• Shroud fan provides protection and extra heat heat dissipation for the radiator
• We will provide 12 months after-sales service for the product; Please feel free to contact us if you have any questions
